rc:diy-h-frame-fpv-quadcopter
This quadcopter was dismantled on 18.6.2016 after 7 flights. The setup had some flaws (see the Notes sections) and Blackout Super Mini H Quad filled the same original purpose better.

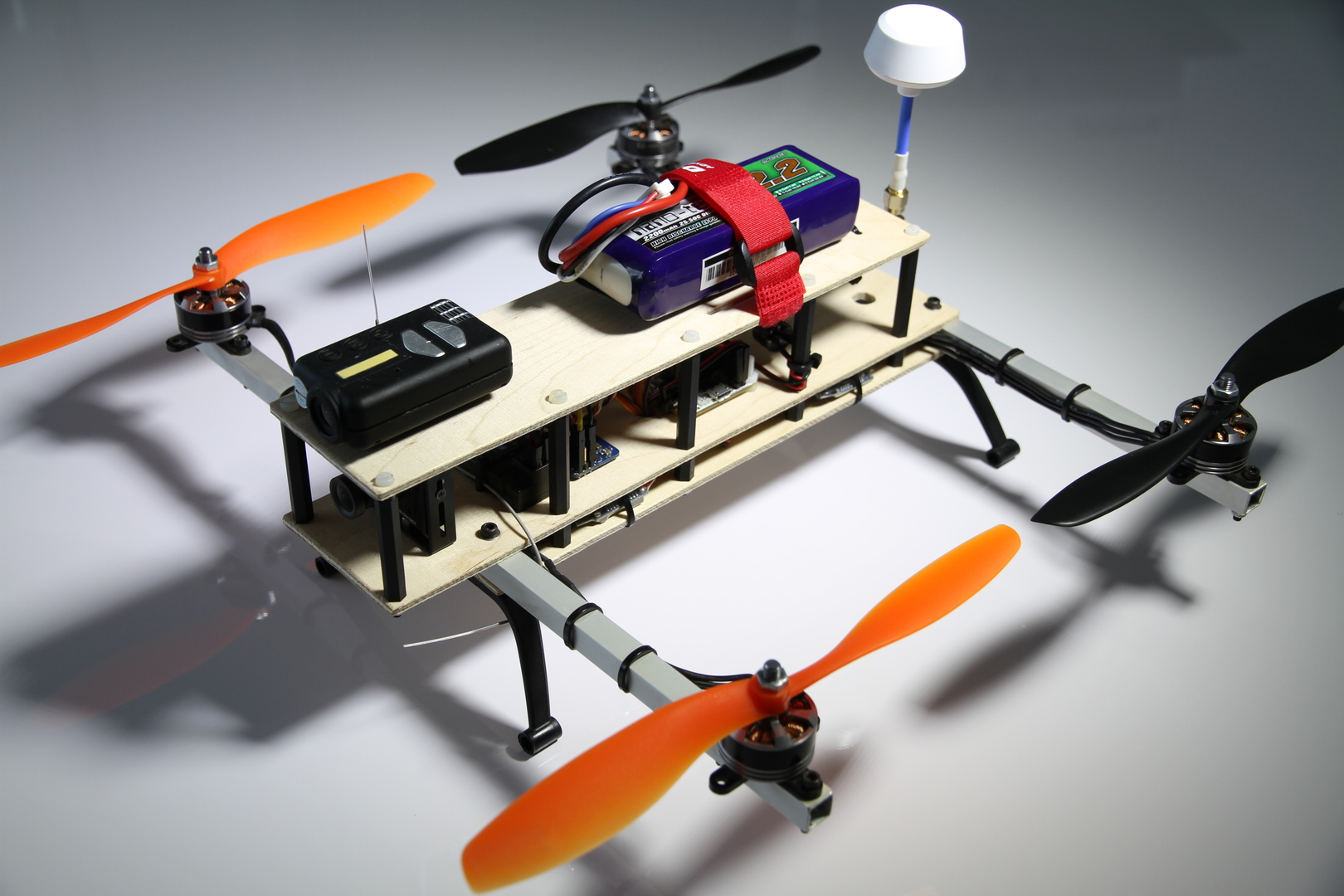

DIY H-Frame FPV Quadcopter
| Specifications | |
|---|---|
| Frame | DIY (Plywood frame + square aluminium arms) |
| FC | Naze32 (full), rev 5 |
| Motor | T-Motor MT2206-23 1200KV x 4 |
| ESC | Bull Tec 12A ESC (with simonk) x 4 |
| Prop | GemFan 8x4.5 x 4 |
| Receiver | FrSky TFR4 |
| Camera | CM-YN3130CH (PAL) with 2.8mm lens |
| VTX | ImmersionRC 5.8 GHz 25 mW |
| Antenna | Circular Polarized |
| OSD | minimOSD with multiwiiosd |
| Battery | Turnigy nano-tech 3S1P 2200 mAh |
| Weight | 530 g 710 g (with battery) 750 g (with battery & mobius) |
| M2M | 35 cm |
| Flight time | around 6 minutes |
Notes
- This frame ended up not getting much use as Blackout Super Mini H Quad was suitable also for cruising and had a better form factor
- Outdated and heavy design
- Bigger 3S or similar 4S battery would likely have been more suitable
- Used motors are rated for 2-3S
- Lack of BEC causes one ESC to heat up far too much
- Long frame causes too easily shadows for signals

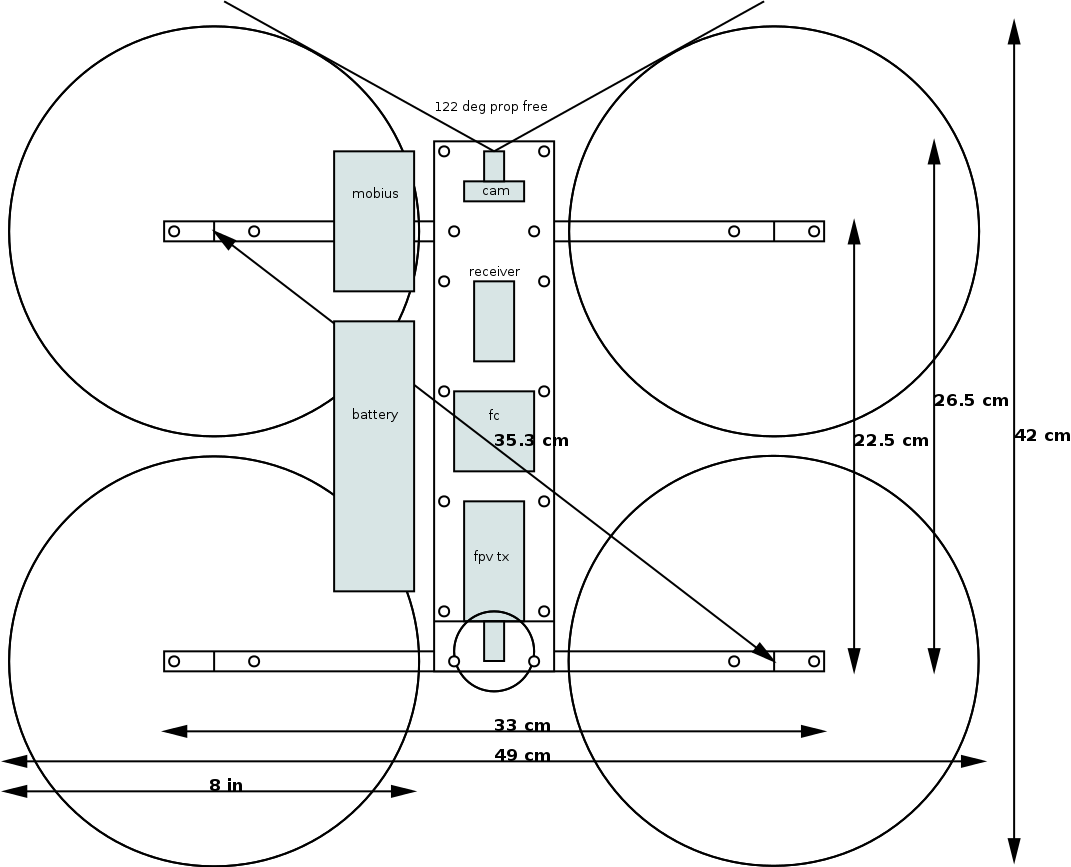

The Plan
