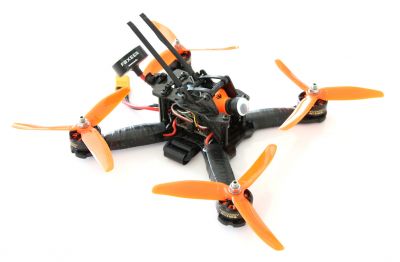

Realacc X210

Specifications
Frame	Realacc X210 Pro
FC	~~Flying Lemon Kiwi F4 (v1)~~ DYS F4 Pro FC v2
~~PDB~~	~~Flying Lemon Kiwi PDB~~
Motor	~~RCX SE2205 (V2) 2400KV x 4~~ T-Motor F40-II 2400kv (2305)
ESC	Aikon 30A V3 x 4
Prop	Kingkong 5040 5x4x3
Receiver	Corona R4FA-SB
Camera	RunCam Swift 2 with 2.5 mm lens
VTX	Aomway TX001 25/200/600 mW 40ch 5.8GHz
Antenna	~~ImmersionRC Circular Polarized SpiroNET v2~~ Foxeer 5.8G RHCP, short
Battery	Turnigy nano-tech 4S1P 1800 mAh 65-120C

Weight	321 g 546 g (with 4S1P 1800 mAh battery)
M2M	21 cm
Flight time	6-7 minutes of cruising 4-5 minutes of faster flying

Videos

Edges of frame pieces should be sanded to avoid wear in wiring
Airbot Omnibus AIO F3 FC doesn't fit into this frame with Airbots own PDB
TBS Unify Pro HV Race VTX overheats and shuts down if not flown within 2 minutes and isn't suitable as a result
Kiwi FC + RCX or T-Motor motors wasn't working combination as it caused jerks during flight
