rc:x210

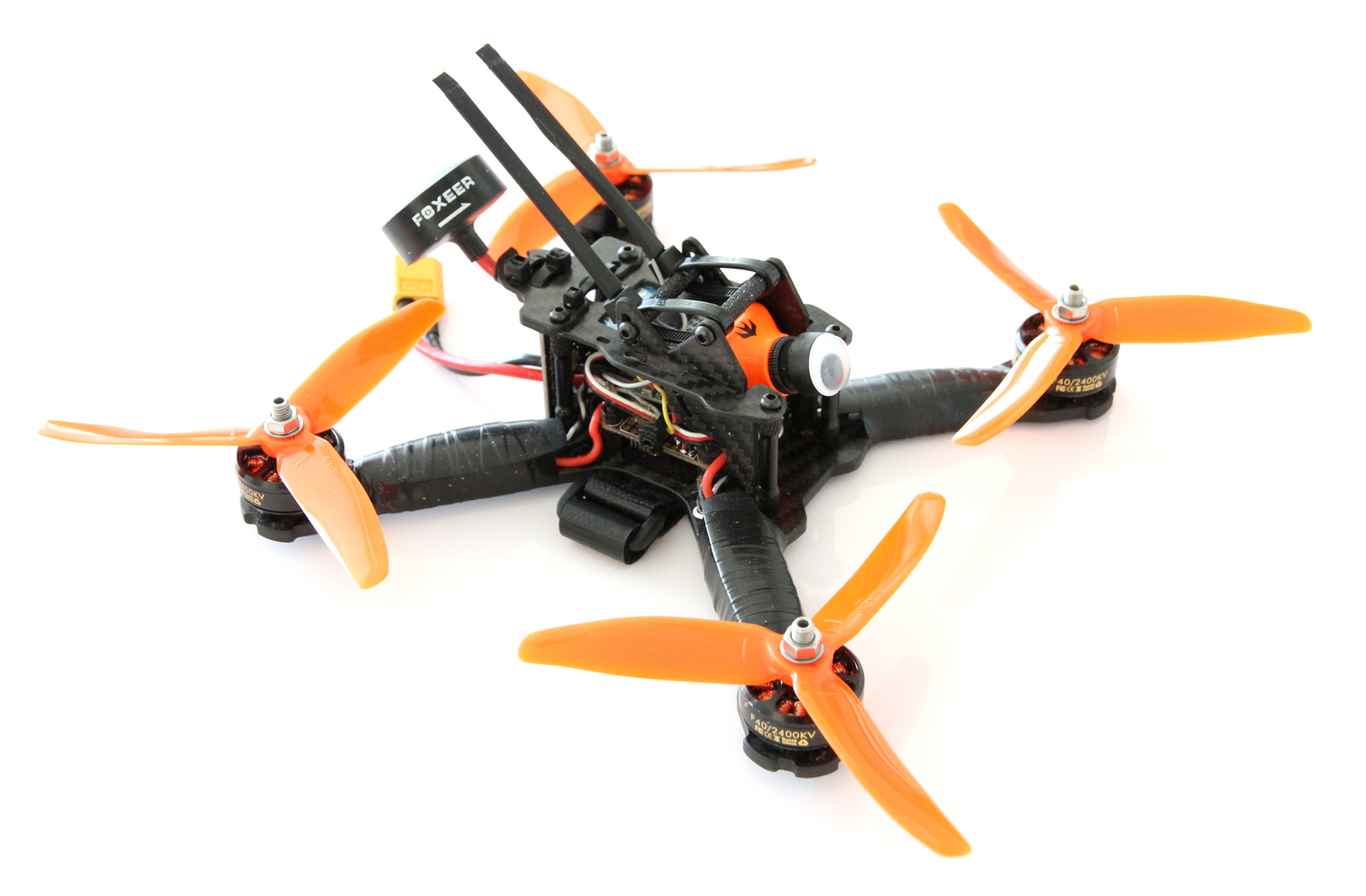

X210
| Specifications | |
|---|---|
| Frame | Realacc X210 Pro |
| FC | DYS F4 Pro FC v2 |
| | |
| Motor | T-Motor F40-II 2400kv (2305) |
| ESC | Aikon 30A V3 x 4 |
| Prop | Kingkong 5040 5x4x3 |
| Receiver | Corona R4FA-SB |
| Camera | RunCam Swift 2 with 2.5 mm lens |
| VTX | Aomway TX001 25/200/600 mW 40ch 5.8GHz |
| Antenna | Foxeer 5.8G RHCP, short |
| Battery | Turnigy nano-tech 4S1P 1800 mAh 65-120C |
| Weight | 321 g 546 g (with 4S1P 1800 mAh battery) |
| M2M | 21 cm |
| Flight time | 6-7 minutes of cruising 4-5 minutes of faster flying |
Videos
- https://www.youtube.com/watch?v=EZ4Y4zYnw3o (2017, DVR recording)
- https://www.youtube.com/watch?v=iDvlEyLDcr4 (2017, GoPro Session)
Notes
- Edges of frame pieces should be sanded to avoid wear in wiring
- Airbot Omnibus AIO F3 FC doesn't fit into this frame with Airbots own PDB
- TBS Unify Pro HV Race VTX overheats and shuts down if not flown within 2 minutes and isn't suitable as a result
- Kiwi FC + RCX or T-Motor motors wasn't working combination as it caused jerks during flight
