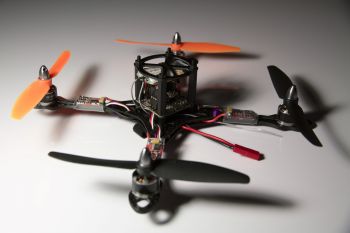

String Theory Quadcopter
| Specifications | |
|---|---|
| Frame | Warpquad String Theory 200 mm |
| FC | Naze32 (Acro), rev 5 |
| Motor | T-Motor MT1306 3100KV x 4 |
| ESC | HobbyKing 6A (flashed with simonk fw) x 4 |
| Prop | GemFan 5x3 x 4 |
| Receiver | FrSky TFR4-B |
| Battery | Turnigy nano-tech 2S1P 950 mAh |
| Weight | 136 g 182 g (with battery) |
| M2M | 20 cm |
| Flight time | around 6-8 minutes |
Notes
- 30 mm nylon standoffs have been used for rising the FC shield and providing enough save for the receiver to also be attached below the top plate. 20 mm standoffs would have been enough without the receiver with pin headers still pointing up.
- The positive (+) wire from ESCs to FC is only connected from ESC of motor 1. The positive (+) pin header on the FC isn't in place for motors 2-4.
- Few grams of weight could have been saved by reducing the length of signal wire from ESCs to FC.
