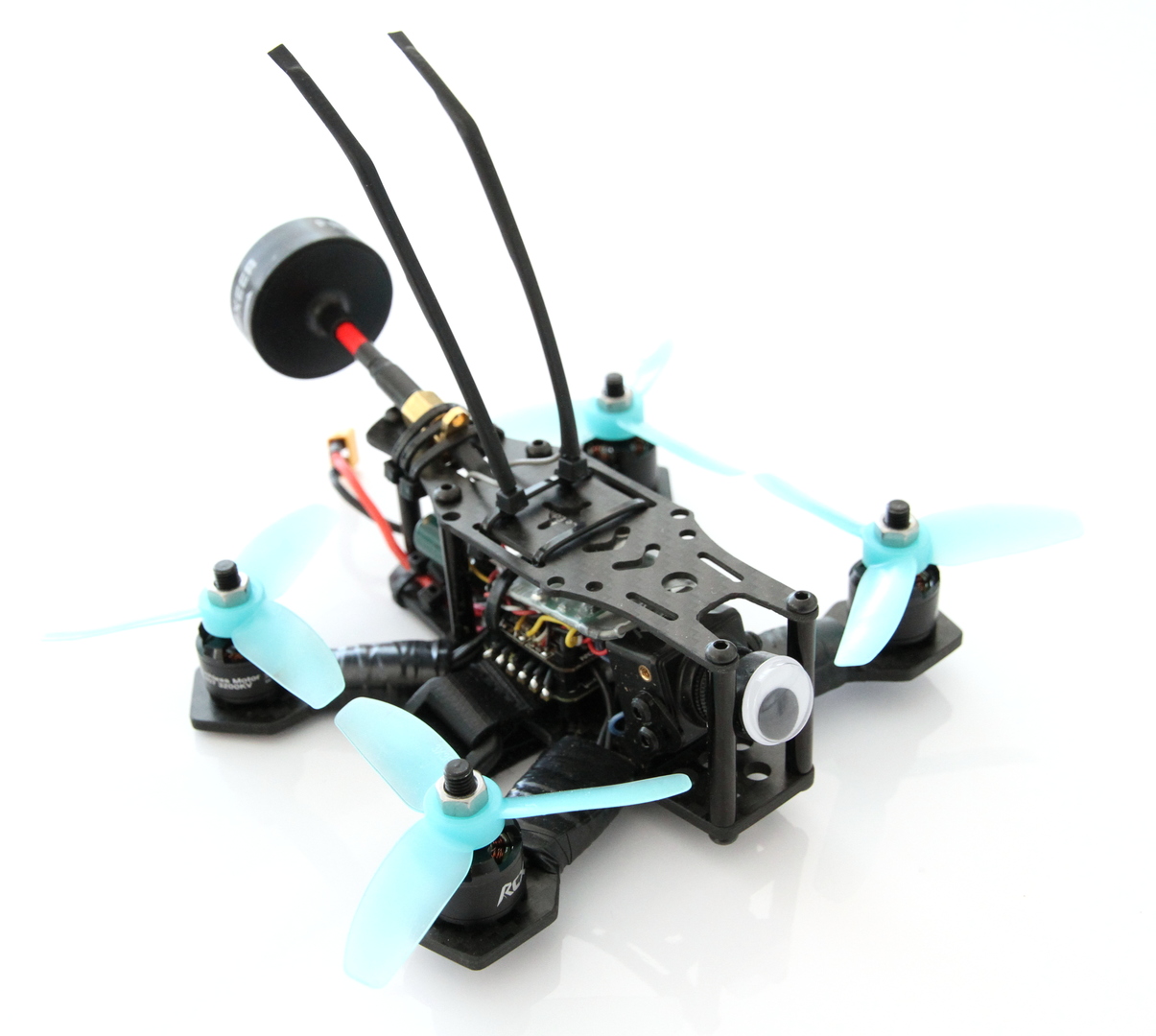

RCX H130CF

Specifications
Frame	RCX H130CF
FC	F3 V1 RacerCube w/ BEC & LC Filter & OSD (from MyRCMart)
ESC	BLHELI_S V1 10A 4in1 ESC (from MyRCMart)
Motors	RCX H1407 3200KV
Props	HQProp 3x3x3
Receiver	FS-RX2A Pro
Camera	RunCam Swift Mini with 2.5 mm lens
VTX	TBS Unify Pro HV Race
Antenna	Foxeer 5.8G RHCP, short
Battery	Tattu 4S 650 mAh 75C

Weight	183 g 252 g (with 4S 650 mAh battery)
M2M	13 cm
Flight time	3-5 minutes

Videos

Edges of frame pieces should be sanded to avoid wear in wiring
Don't attempt to flash the ESC firmware, 1 of 4 is likely to fail if done via FC, however changing settings is ok
Motor KV is too low for 3S batteries, can be flown but feels underpowered

Don't mix V1 and V2 FC and ESC board, the connecting wires have different outputs
- V2 is much less messy to use and it doesn't require a separate battery wiring to FC
The battery wires are on the bottom of the ESC board so be extra careful not to let plain wires touch the frame
- Use a piece of electric tape just to be on the safe side
